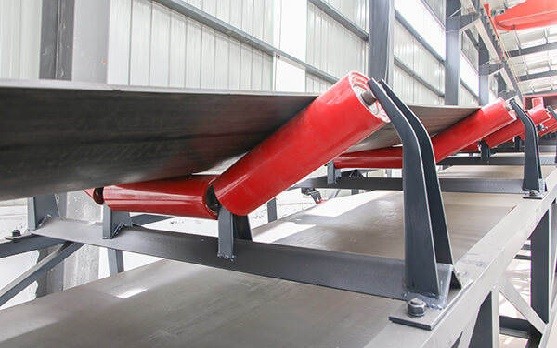

An idler belt conveyor refers to a conveyor system where the belt is supported and guided along its path by a series of rotating rollers called "idlers", which are not powered themselves but instead rely on the movement of the belt to transport materials; essentially, idlers act as passive support points for the conveyor belt, allowing it to smoothly carry the load without significant friction or strain.
Key points about idler belt conveyors:
Function:
The primary role of idlers is to support the conveyor belt and the material being transported, preventing sagging and ensuring smooth movement along the conveyor path.
Components:
Each idler consists of a cylindrical roller with bearings, mounted on a frame that is attached to the conveyor structure.
Types of idlers:
Depending on the application, different types of idlers can be used, including carrying idlers (supporting the load on the belt), return idlers (supporting the belt on the return side), troughing idlers (creating a V-shaped trough to contain bulk materials), and training idlers (for belt alignment).
Benefits:
- Reduced friction: By providing smooth rolling surfaces, idlers minimize friction between the belt and the conveyor frame, allowing for efficient material transport.
- Flexibility: Different idler arrangements can be designed to suit various material types and conveyor configurations.
- Durability: Idlers are typically designed to withstand harsh operating conditions and heavy loads.
