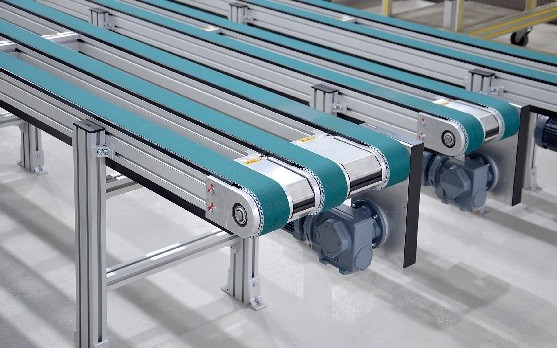

A timing belt conveyor is a type of conveyor system that utilizes a toothed belt (similar to a timing belt in a car engine) to precisely transport products, offering accurate positioning and controlled movement, making it ideal for applications requiring high precision in material handling, especially for light and delicate parts; it operates by the teeth on the belt engaging with matching grooves on the pulleys, ensuring synchronized motion and minimal slippage.
Key features of a timing belt conveyor:
- Precise positioning: Due to the teeth on the belt, it provides very accurate product placement compared to standard conveyor belts.
- Low backlash: Minimal belt slippage results in precise control over product movement.
- Suitable for small parts: The design is well-suited for handling small, delicate components.
Applications:
Can be used for various industries including electronics, pharmaceuticals, and food processing.
Components of a timing belt conveyor:
- Toothed belt: The primary component, featuring teeth that mesh with the pulleys.
- Toothed pulleys: Special pulleys with matching grooves to engage with the belt teeth.
- Idler pulley: A non-powered pulley used to maintain belt tension.
- Conveyor frame: The supporting structure holding the pulleys and belt in place.
- Motor and drive mechanism: The power source that drives the conveyor belt.
